Fabrication of a Steel X-Ray Inspection Cabinet for the Medical Industry

(click on thumbnail to enlarge)

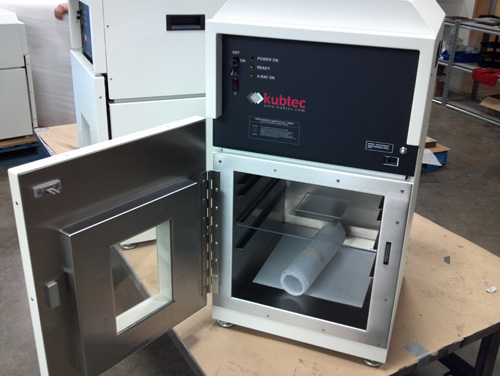

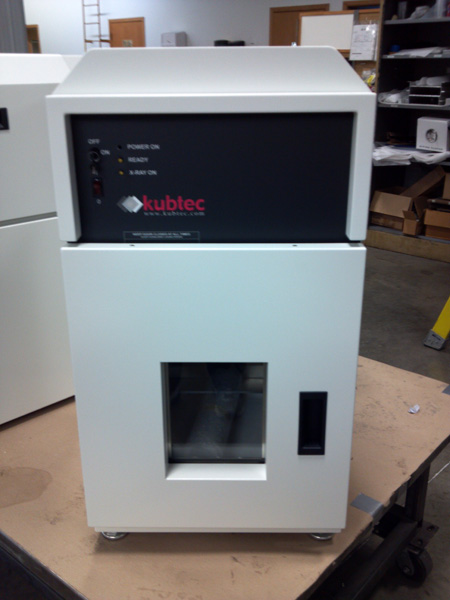

This custom steel fabrication project was designed for use as an x-ray inspection cabinet for a medical application. The cabinet is 20.86" x 18.50" x 31.27" and fabricated from cold rolled steel. For this project, we sourced the purchased components and hardware desired by the customer and custom fabricated the remaining parts. After parts were fabricated and machined, the cabinet was welded with our TIG welder before final painting and silk screening.

The final cabinet met dimensional tolerances of .010" and underwent dimensional and visual inspection before being shipped complete to our customer in Connecticut. This project had a total turnaround time of 12 weeks. At Middleton Machine, our wide range of resources and capabilities allows us to complete projects with multiple levels of fabrication including component sourcing, sheet metal fabrication, machining, assembly, and finishing. For more information about this steel x-ray inspection cabinet project, see the table below, or contact us directly.

Highlights of this Steel X-Ray Inspection Cabinet Project

Product Description: This cabinet encloses an X-Ray machine.

Fabrication Capabilities Applied/Processes

Primary:
Component Sourcing
Fabrication

Saw Cutting
Shearing
Punch Press/Press Brake
Welding - TIG
Drilling

Secondary:
Silk Screening
Assembly - Hardware and Fasteners
Painting

Equipment Used to Manufacture Part: Saw, Punch Press, Shear, Machining Center, Press Brake, Pemserters, Drill Press, Welder

Overall Part Dimensions

Length: 20.86"
Width: 18.50"

Height: 31.27"

Tightest Tolerances: .010

Material Used: Cold Rolled Steel

Material Finish: Liquid Paint, SS #4

In process testing/inspection performed: Dimensional Inspection, Visual Inspection

Industry for Use: Medical Industry

Volume: 5

Delivery/Turnaround Time: 12 weeks

Delivery Location: Milford, Connecticut

Standards Met: Customer Specifications, 2D CAD Drawing

Product Name: X-Ray Inspection Cabinet
